Дополнительная информация: Планетарная передача Gear PLE 60 - нагрузка при постоянной эксплуатации / периодическая нагрузка до 44 / 70 Нм

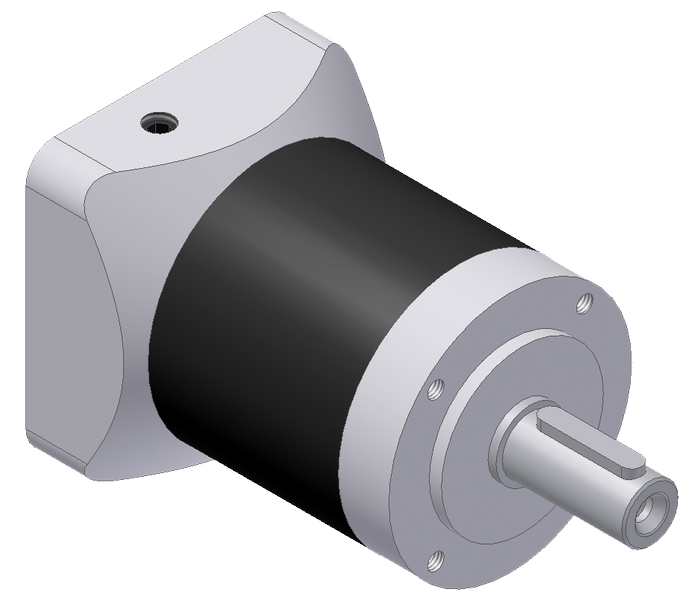

The PLE 60 is the perfect economical alternative to servo planetary gears. The motor and gear are connected with a detachable coupling and clamping hub. Friction losses are negligible. The gear is suitable for all applications in where it is adequate to have a backlash of approximately 20 arcmin.

Features

• 22 different gear ratios, i=(3 … 512)
• low backlash (16-20-22 arcmin), (1-2-3)-stage
• high level of efficiency (96-94-90 %), (1-2-3)-stage
• high admissable shaft forces (600 … 500 N), axial-radial
• coaxial shaft output
• high short-term overload factor 1,60
• arbitrary mounting position
• lifetime lubrication

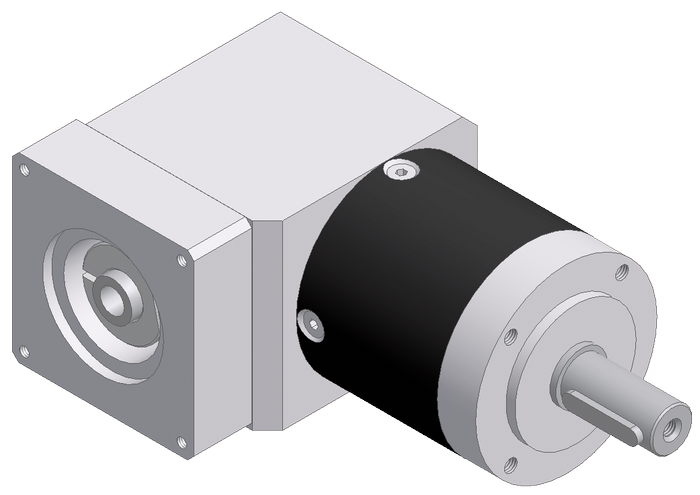

The WPLE 60 is the 90° angle version to the PLE 60. The motor and gear are connected with a detachable coupling and clamping hub. Friction losses are negligible. A bevel gear 1:1 is in front of the PLE 60. The gear backlash increases by an angle part of 6 arcmin.

Features

• 22 different gear ratios, i = (3 … 512)
• low backlash, (22-26-28 arcmin), (1-2-3)-stage
• high level of efficiency (94-92-88 %), (1-2-3)-stage
• high admissable shaft forces (600 … 500 N), axial-radial
• no axial offset shaft output
• high short term overload factor 1,60
• arbitrary mounting position
• lifetime lubrication

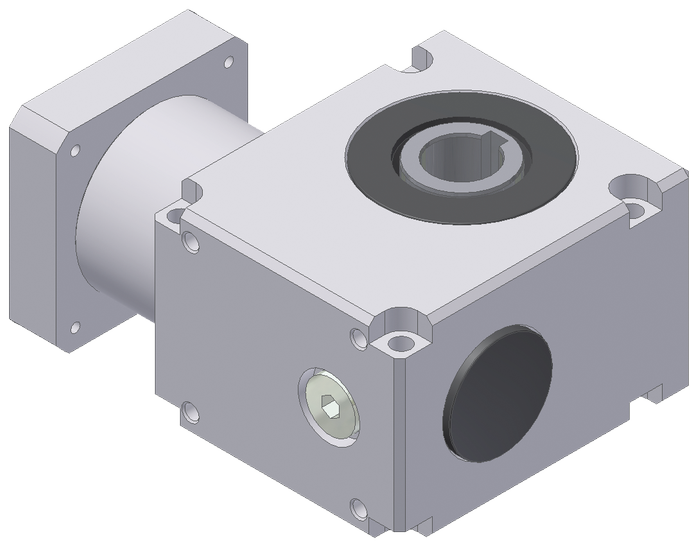

The SR 031 has a hollow shaft and is equipped with a robust bearing. The motor and gear are connected with a detachable coupling and a clamping hub. Friction losses cannot be neglected. The gear is ideal for applications with confined installation spaces and with high shaft forces.

Features (partly dependent on reduction and speed)

• 8 different gear ratios, i = (5 … 50)
• low backlash (6 arcmin)
• high level of efficiency (82 … 50 %), at 1.500 min-1
• high admissable radial shaft forces, 500 … 2.000 N
• axial offset shaft output of 31 mm
• high short term overload factor 1,60
• arbitrary mounting position
• lifetime lubrication
